Purpose and Installation Method of Stud Bolt

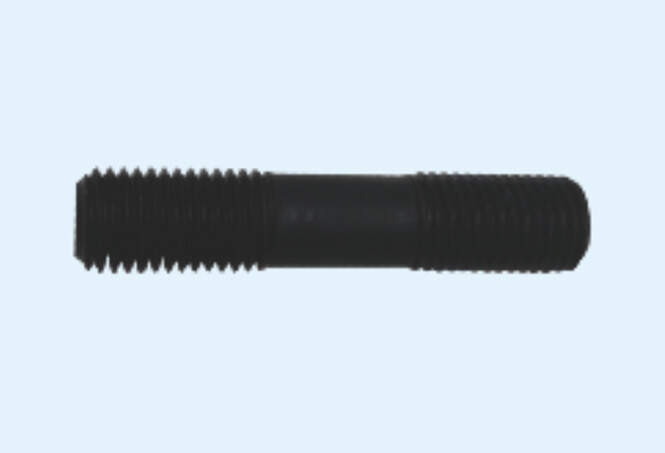

Double Ended Stud Bolts are very common in our daily life, but everyone is not very familiar with the use method of stud bolts. It can be said that we know very little about the use method of stud bolts, so let's explain the use and installation of Double Ended Stud Bolts.

Purpose of the stud bolt

1. Double Ended Stud Bolts can be used in large-scale main equipment, and installation accessories such as mirror, mechanical seal seat stud bolt, reducer frame, etc. are required. At this time, the stud bolt is applied, and the anchor bolt at one end enters the behavior body. After installation, the connector is installed to the other end of the nut. Because the connector is often disassembled and disassembled, and the external thread will be damaged or destroyed, the application of a stud bolt will be more convenient for disassembly and replacement.

2. Double Ended Stud Bolts can be used to connect objects with great thickness because stud bolts can be used when the length of bolts is very long.

3. Double Ended Stud Bolts can be used to connect thick plates and places where it is inconvenient to use hexagon bolts, such as concrete roof truss, roof beam suspension, monorail beam suspension, etc.

Installation method of the stud bolt

1. Lubricating oil must be used when installing the Double Ended Stud Bolt to prevent the bolt from being stuck during screwing in, and it can also be disassembled for repeated installation. To ensure the tightness of the fastening end of the stud bolt and the thread of the equipment body, and not to cause any looseness of the Double Ended Stud Bolt in the process of assembling and disassembling the nut, the fastening end of the stud bolt shall adopt over the wave, with a certain amount of interference to the rear pitch diameter, and the form of shoulder structure can be selected.

2. The axis line of the Double Ended Stud Bolt must be perpendicular to the surface of the machine body. Attention must be paid to this point when drilling the bottom hole and tapping. It is best to check it with an angle ruler during installation. When there is a small inclination between the axis line and the surface of the machine body, the screw hole can be corrected with a tap. When the inclination is large, it cannot be corrected with brute force to prevent the bolt from being damaged.

3. The Double Ended Stud Bolt has the function of connecting the fixed link of machinery. Both ends of the stud bolt are threaded, and the screw in the middle is thick or thin. The stud bolt is mainly used for boiler steel structures, mining machinery, bridge, motorcycle, automobile, long-span steel structures, suspension towers, and large-scale buildings.
