Washers, Bolt And Spring Pins: What Do You Know About Them?

Generally, fasteners include the 12 categories: bolts, studs, screws, nuts, tapping screws, wood screws, washers, retainers, pins, rivets, assemblies and joints, and welding nails. For some, we may have seen them but don’t know what it’s called. Here, in this guide, we will mainly introduce three types of fasteners: washers, bolt and pins.

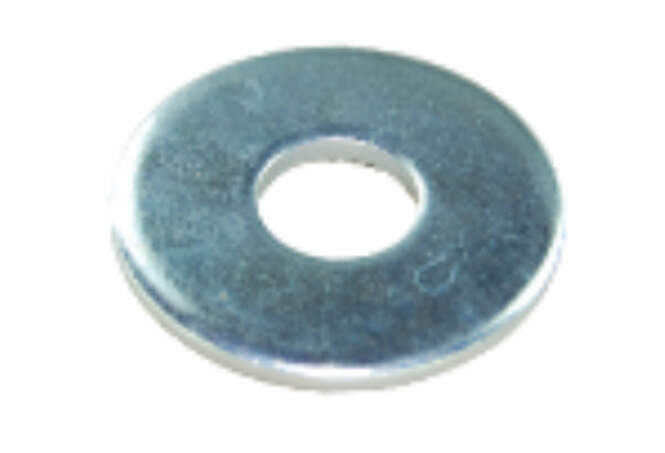

What Is Washers?

Washers are mechanical parts used in combination with screw fasteners. More specifically, the product works well with bolts and nuts. They are usually composed of flat, round, or disk-shaped metal plates. Washers have a hole in the middle. They must be placed through the ends before threaded fasteners can be connected to the surface. These products usually prevent screw loosening or distribute the load from other components, such as nuts or bolt heads, to the surface area. Mild steel thin flat rings work well for load distribution.

In addition, different types of washers prevent loosening. Here, washers of various types act as springs to balance the increased distance between the bolt head and the nut. In addition, it balances the distance between the screw head and the object clamp.

In addition to act as spring, these washers have a tip that impinges on the workpiece and the screw head. Attachments provide a firm lock. The tip of the washer is called a toothed or shock-proof lock washer. The teeth on the washer can bend and twist in the plane of the gasket surface. Tapered washers have spring motion, but because of friction, they can perform locking action. Another type of washer, the coil spring washer, is one of the most commonly used lock washers.

What Is Spring Pins?

Spring pins, often called slotted pins, rolling pins, or tension pins, are hollow cylindrical tubular press-fit fasteners with chamfering ends. They are made of alloy, carbon and stainless steel and have springlike properties. Spring pins are used as locking devices, anchor points, anti-scratch surfaces, shafts or wiring sleeves.

How Does Spring Pin Work?

The spring pin will compress when it is inserted into the hole. Due to the spring nature of the pin, the diameter of the pin is slightly reduced when inserted into the hole. After installation, the spring force the pin back to its resting state, forcing the outer surface of the pin against the inner wall of the mating hole. Friction between the two surfaces holds the pin in place, preventing it from falling off or inadvertently falling off.

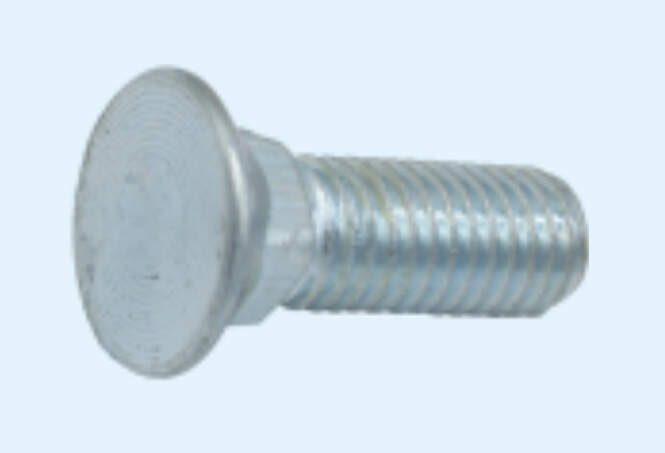

What Is Bolt?

Bolts are mechanical fasteners with threaded shafts. Bolts are closely related to screws, which are also mechanical fasteners with threaded shafts. These types of fasteners are usually inserted through two sections with aligned holes.

We can tell bolt and screw according to the use method. Insert bolts into all parts with unthreaded holes and screw nuts onto bolts to provide clamping force and prevent axial movement. The screw may first pass through a first part with a clearance hole, but its threads match threads in one of the parts being tightened. Screws can cut their own threads or in conjunction with threaded parts.

Parts Of Bolts

• Head: The head is the top of the bolt. It serves as a grip surface for tools. To tighten or loosen bolts, the head must be clamped with a tool with the appropriate bit. Most bolts have wrench - shaped heads.
• Calf: The lower leg is located under the head. The shank is the smooth part of a bolt without thread. It should prevent radial motion of the joint workpiece. Without a handle, the bolt is more likely to come loose. Some artifacts vibrate, while others are exposed to vibrations in their environment.
• Grip length: It is the part of the bolt used to hold the parts to be assembled. The clamping length shall be equal to the total thickness of the connecting part.
• Thread: All bolts have threads. Thread is what allows the bolt to enter or exit the workpiece. However, most bolts do not consist entirely of threads. They have a head, then a smooth handle, and finally threads.
• Thread length: The part of the bolt that holds the nut.
• Nominal length: the sum of thread length and clamping length

In The End

Do you know them better after reading this passage? If you are looking for fasteners, YUYAO AKF is a good choice. We can provide a variety of fasteners like large bronze washers,heavy duty spring pins and other colors and sizes of them.
